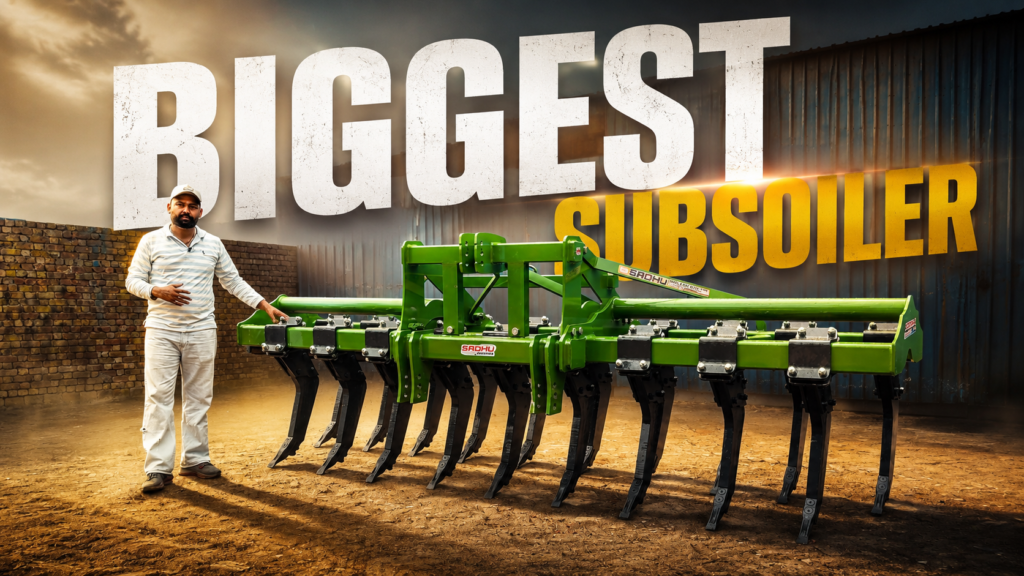

When it comes to breaking hardpan soil and preparing land for deep-root farming, conventional subsoilers simply cannot meet the requirements of ultra-high horsepower tractors. To solve this challenge, Sadhu Implements has developed India’s Biggest Subsoiler, a custom-built heavy-duty machine engineered specifically for international export markets and designed to operate with 500+ HP tractors.
This isn’t just another agricultural implement—it’s one of the largest and heaviest subsoilers ever manufactured in India, featuring 19 massive tines, an extremely strong structural frame, and industrial-grade components built for continuous heavy-duty operation.
Whether you’re a large-scale farming enterprise, agricultural contractor, or international buyer looking for oversized tillage equipment, this machine represents a new benchmark in heavy agricultural engineering.
What Makes India’s Biggest Subsoiler Unique?
India’s Biggest Subsoiler has been specially manufactured according to a customer’s custom specifications for export.
Unlike standard subsoilers available in the Indian market, this model has been designed for tractors exceeding 500 horsepower, making it suitable for large commercial farms where deep soil ripping is essential.
Some of its standout characteristics include:
- India’s first 19-tine heavy-duty subsoiler
- Designed for tractors above 500 HP
- Approximate weight of 2.2 tonnes
- Heavy-duty 125 × 125 mm structural frame
- 8.5 mm thick frame pipe
- 50 mm (2-inch) thick heavy-duty tines
- Original JCB shank points
- Adjustable tine spacing
- Three-point linkage system
- Built for export-quality performance
Why Large Farms Need India’s Biggest Subsoiler
Modern commercial agriculture often faces severe soil compaction caused by heavy machinery and continuous cultivation.
Compacted soil creates problems such as:
- Poor root penetration
- Reduced water infiltration
- Low oxygen availability
- Poor drainage
- Lower crop yields
A heavy-duty subsoiler breaks the compacted layer without completely disturbing the topsoil.
India’s Biggest Subsoiler is capable of handling extremely difficult soil conditions where standard implements simply cannot perform efficiently.
Massive 19-Tine Design
The biggest highlight of this machine is its 19 heavy-duty tines.
Each tine has been individually mounted using heavy-duty bolts rather than welded permanently into the frame.
This design offers several advantages:
- Easy replacement
- Better load distribution
- Increased durability
- Reduced maintenance
- Adjustable spacing
Since every tine works independently, the frame experiences less stress even under extreme operating conditions.
50 mm Heavy-Duty Tines
Each tine is manufactured using approximately 50 mm (2-inch) thick heavy-duty steel, making it significantly stronger than conventional agricultural subsoilers.
These oversized tines are capable of handling tremendous draft forces generated by 500 HP tractors.
The machine also uses original JCB shank points, known for their excellent wear resistance and long service life.
Heavy-Duty Structural Frame
One of the strongest aspects of India’s Biggest Subsoiler is its reinforced frame construction.
Frame Specifications:
- 125 × 125 mm (5 × 5 inch) heavy-duty square pipe
- 8.5 mm wall thickness
- Multiple reinforcement supports
- Heavy center bracing
- Side support structures
- High-strength welded construction
The additional center reinforcement prevents frame flexing while operating under enormous pulling forces.
Adjustable Tine Gap
Different farming conditions require different ripping widths.
To solve this, every tine has been mounted using heavy-duty clamping bolts.
Benefits include:
- Adjustable tine spacing
- Easy maintenance
- Customized working width
- Better compatibility with different soil conditions
This flexibility makes the machine suitable for multiple agricultural applications.
Built for 500 HP Tractors
One of the most important facts about India’s Biggest Subsoiler is that it is not designed for regular tractors.
Because of its enormous size and weight:
- 50 HP tractors cannot operate it
- 100 HP tractors cannot lift it
- 200 HP tractors are insufficient
- Even many high-horsepower tractors cannot handle it efficiently
The machine has been specifically engineered for tractors producing 500 horsepower or more.
Approximate Weight: 2.2 Tonnes
The overall weight of the implement is approximately 2.2 tonnes (2200 kg).
This heavy construction provides:
- Excellent soil penetration
- Higher stability
- Better strength
- Reduced vibration
- Long operational life
The weight itself demonstrates the industrial nature of this machine.
Ground Clearance
The subsoiler offers approximately 32 inches of ground clearance.
Higher clearance allows:
- Deep tillage operations
- Better residue handling
- Smooth movement across uneven fields
- Improved performance in heavy crop residue
Export Quality Manufacturing
This particular model has been manufactured for an overseas customer.
Every component has been selected keeping export standards in mind.
Features include:
- Precision fabrication
- Heavy structural engineering
- Industrial-grade bolts
- Original wear parts
- Reinforced frame
- Long service life
The machine reflects India’s growing capability in manufacturing world-class agricultural equipment.
Three-Point Hitch System
India’s Biggest Subsoiler uses a heavy-duty three-point linkage.
The hitch can be adjusted according to tractor tyre size and operating height, allowing better compatibility with different tractor configurations.
Applications of India’s Biggest Subsoiler
This machine is suitable for:
- Large commercial farms
- International agricultural projects
- Deep ripping
- Breaking hardpan
- Soil aeration
- Water infiltration improvement
- Plantation land preparation
- Large-scale land development
Benefits of Using India’s Biggest Subsoiler
Better Root Development
Deep ripping allows roots to penetrate deeper into the soil.
Improved Water Infiltration
Water reaches lower soil layers more effectively.
Reduced Soil Compaction
Hardpan layers are broken efficiently.
Increased Crop Productivity
Healthier root systems contribute to better crop growth.
Long Equipment Life
Heavy-duty construction ensures years of reliable performance.
Lower Maintenance
Replaceable components simplify servicing.
Technical Specifications
| Specification | Details |
|---|---|
| Product | India’s Biggest Subsoiler |
| Number of Tines | 19 |
| Tractor Requirement | 500+ HP |
| Weight | Approx. 2.2 Tonnes |
| Tine Thickness | 50 mm (2 inch) |
| Frame Size | 125 × 125 mm |
| Frame Thickness | 8.5 mm |
| Ground Clearance | Approx. 32 Inches |
| Hitch | Three Point Linkage |
| Tine Adjustment | Adjustable |
| Wear Parts | Original JCB Shank Points |
| Manufacturing | Heavy Duty Export Quality |
Why Choose Sadhu Implements?
Sadhu Implements has earned recognition for manufacturing robust agricultural machinery designed for demanding farming conditions.
The company focuses on:
- Heavy-duty engineering
- Custom agricultural machinery
- Export-quality manufacturing
- Advanced fabrication
- Strong structural designs
- Customer-specific solutions
From cultivators and harrows to custom-built heavy implements like India’s Biggest Subsoiler, the company continues to deliver equipment engineered for performance and durability.
Frequently Asked Questions (FAQs)
What is India’s Biggest Subsoiler?
India’s Biggest Subsoiler is a custom-built 19-tine heavy-duty agricultural implement designed for deep tillage using tractors with more than 500 horsepower.
How many tines does India’s Biggest Subsoiler have?
It features 19 heavy-duty tines, making it one of the largest subsoilers manufactured in India.
What tractor is required?
A tractor with approximately 500 HP or more is required to operate this implement efficiently.
What is the weight of the subsoiler?
The machine weighs approximately 2.2 tonnes (2200 kg).
Are the tines adjustable?
Yes. Each tine is individually clamped using heavy-duty bolts, allowing spacing adjustments according to operational requirements.
What type of shank points are used?
Original shank points are used for superior durability and wear resistance.
Is this machine available for export?
Yes. This particular model was specially manufactured for an export customer and can be custom-built according to client requirements.
Final Thoughts
India’s Biggest Subsoiler represents a major milestone in India’s agricultural equipment manufacturing industry. With its 19 heavy-duty tines, 2.2-ton construction, 125 × 125 mm reinforced frame, original JCB shank points, and compatibility with 500 HP tractors, it is designed to tackle the toughest soil conditions on the largest farming operations.
For commercial farms, international buyers, and organizations requiring ultra-heavy tillage equipment, this subsoiler showcases the strength, engineering, and manufacturing capabilities of modern Indian agricultural machinery.
